Jun 7

Missing B screws

4 comments

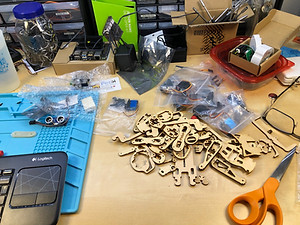

I just got my kit today (huzzah!) I did not find any B screws in it though. So far, everything else seems to be there. The board with the shanks on it had tape, but I don't recall any blocks with the screws set in them. I just dove right in and started assembling, so I don't have any good pics of the raw pieces other than the attached.





Also, small bit of feedback - the sanding block was just a little too inadequate to sand all the pieces down for me. Can I just roll with 220grit sandpaper?



There is a green "2" written on one end of the priority mail box the kit came in.

Order #826

Jun 7Edited: Jun 7

It’s different in recent shipments. Mine is as same as yours. screw b was to be replaced by screw c, which is mentioned in the instruction.

Screw B are replaced by Screw C (with flat ends). Screw D are used for mounting servos, and their pointy ends are inside the robot body to avoid injury.

Jun 8

Ah. I wasn't sure if my kit was a 'later version'. I was able to finish construction. The instructions on just how to mount the main board with a raspberry pi aren't very clear - I could not tell if the board was supposed to be mounted to the underside of the back pieces, or on top. On top seems to work so far.

Yes, to the top side. Check out this side by side comparison. It's also shown in the written instruction.
